Headlight Modes

These are the various ways the headlights can be controlled on your 2x2.

• OFF
• when the bike is ON and in Neutral (see green N on dash)
• when in Stealth mode in the UBCO App

*Stealth mode will also turn out

• • the headlight/taillight
  • the turn indicators
  • and the Dash

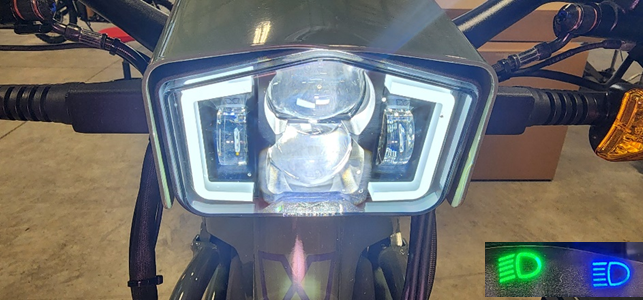

This is what your headlight will look like when the bike is:

• ON and in RUN Mode
  • you will see a green headlight indicator on your dash (when not in Stealth mode)

This is the headlight with the high beam active.

• To activate the headlight high beam, simply push the high beam indicator on the left-hand controls.
  • you will see a green and blue headlight indicator on your dash

Headlight OFF and Running Lights ON

• When you want to turn out the main headlight but keep the running lights side bars on
  • turn ON your bike
  • then when in RUN and press the low beam switch on the left-hand controls for 2 seconds.
    • no dash indicator will be visible in this mode

High Beam ON and Running Lights ON

• You may also elect to activate the high beam while in this “running lights only” mode.
• Simply hit the high beam switch and it will activate the high beam
  • see the blue indicator only on the dash
